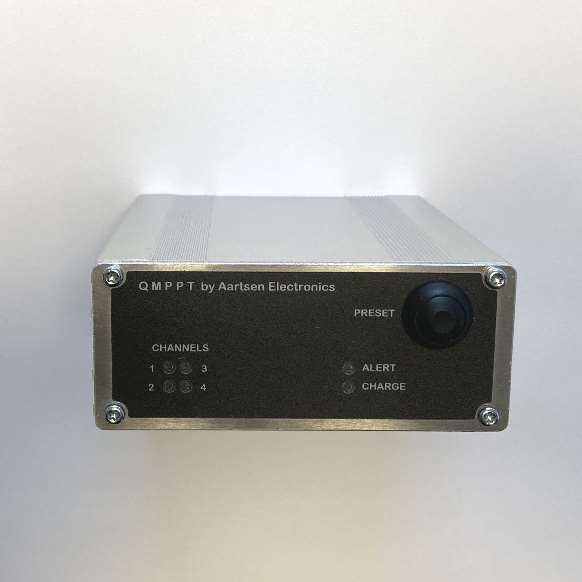

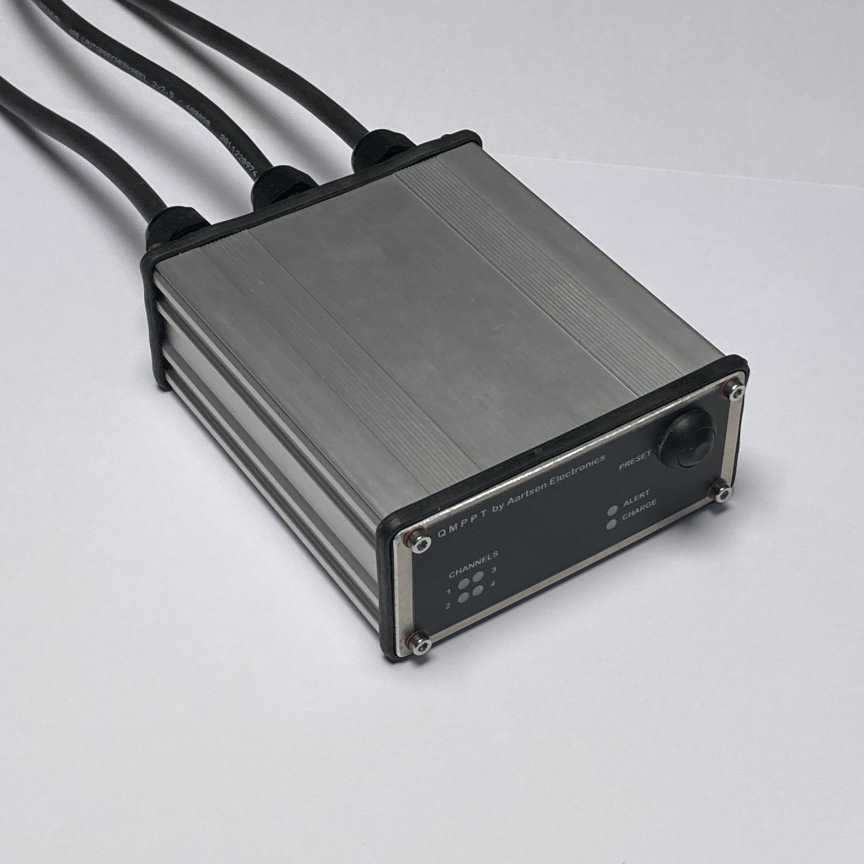

This charger was designed to be the best mppt charger on the market for mobile use. It has two channels that can be used for separate panels, or combined to double power. The device is controlled by a Digital Signal Processor that can quickly respond to fast changing light levels on a moving vehicle. It has rugged cable entries that will prevent accidental disconnection due to vibrations.
By default the charger will prolong the battery life by limiting the charge level to 80%. If needed you can increase the charge level to a 100% by pressing the button on the front panel.
You can select your battery chemistry and voltage here. If you decide to change your battery type on a later stage and you can change the setting yourself also. Connectors and cables can be ordered separately, or you can have them pre-assembled.
- two independent mppt channels
- operated by a push button
- indicators for charging, battery status and alerts
- panel voltages from 11.5 V to 40.0 V
- battery voltages typically 36V or 48V
- cell chemistries Lead(Pb), Lithium Ferro Phosphate (LFP), Lithium nickel manganese cobalt (NMC)
- output fuse 10A / 15A
- maximum power 280 W / channel
- efficiency ≥ 98%
- Digital Signal Processor (DSP) inside
- dimensions 227 x 109 x 45

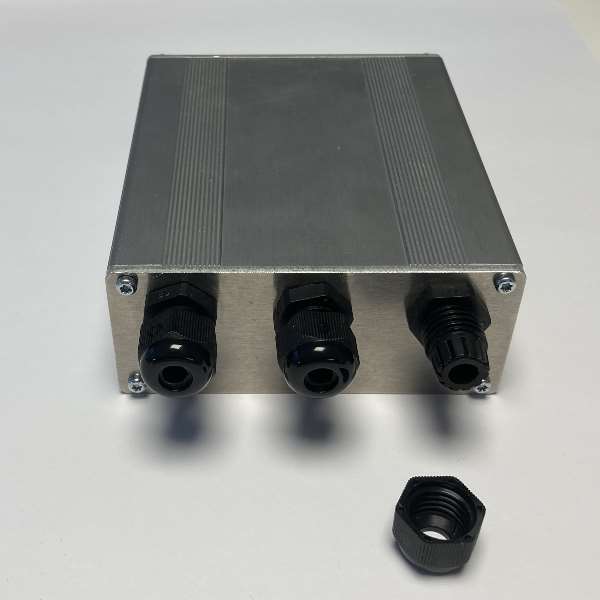

- cable clamping diameter 4 .. 8 mm
- cable connection soldering onto solder tabs
- internal shock absorbers
- weight 0.48 kg
